AIO TKO (5 in 1)
The AIO TKO Kit, without a PID.
Already own a PID controller? Expand your setup with The AIO (All-in-One) TKO Upgrade Kit.
The AIO TKO Upgrade Kit provides all the hardware, glass, base, and coil from our flagship 5-in-1 desktop system, minus the PID unit. Designed for experienced ball vape users who already own an XLR 5 pin PID controller (such as Auber, CrossingTech, Cannabis Hardware, or Ripping Terps units), this kit offers a cost effective route to transform your existing rig into a ultimate 5 in 1 station.
Built around our heavy duty 6061 aircraft aluminium base station, this kit unlocks five distinct extraction modes without having to purchase extra redundant hardware.
Complete 5 in 1 Session Flexibility
Plug your current PID controller into the supplied 25mm extended barrel coil to access five versatile desktop configurations:
- 1. Wired Extractions: Secure the included titanium collar and secondary wooden handle to lock the heating coil onto the head for continuous, back-to-back draws with no heat soak downtime.
- 2. Cordless Extractions: Detach the locking collar, mount the coil inside the aluminium base, and lift the heater off the dock for cable free sessions.
- 3. Injector Mode: Slot the heater head injector side into the Glass Injector Bowl for a rapid, flavour focused airstream.
- 4. Diffuser Mode: Switch over to the 22mm Glass Diffuser Bowl for producing thick, single draw clouds.
- 5. Cordless Concentrate Melts: Warm the included opaque bottom glass banger directly inside the base station coil for wireless dab sessions.
25mm Extended Barrel Heating Engine
This upgrade pack includes our 25mm Extended Barrel Coil, engineered to match the thermal demands of both wired and cordless operation.
- Full Thermal Coverage: The tall coil body surrounds the internal glass core, maintaining even heat distribution across all 180 pre-installed 3mm ruby balls.
- Precision Dual Use Fit: Sized for a snug fit whether housed in the aluminium dock for wireless warming or collared to the head for tethered use.
- Instant Thermal Recovery: High thermal capacity ensures immediate extraction efficiency across both flower and concentrate setups.
Pristine All Glass Airpath
Maintain peak flavour profiles across all dry herb modes with an isolated vapour path:
- Glass Enclosed Rubies: The gem chamber houses 180 rubies inside a high purity glass tube, capped with glass retention screens.
- Mesh Free Drilled Glass Bowls: Supplied with pre-drilled glass screens in the diffuser bowl, eliminating metal mesh degradation along the airflow route.
- Pure Terpene Profile: Heated air only travels across pure glass and ruby surfaces prior to reaching your water piece.
Aircraft Aluminium Station & Dual Docking System
Keep your desktop organised, stable, and safe:
- Solid 6061 Aluminium Base: Machined from solid aircraft grade aluminium to anchor your station securely on the desk.
- Dual Heat Parking: Combines the primary wireless coil dock with a thread-in heat post for safely resting the hot heater head during wired operation.
- Integrated Accessory Bays: Precision bored storage holes hold your glass bowls, carb caps, and stir tools upright and accessible.
- Self Sealing Alignment: In wireless mode, the weighted head rests flat over your glass bowl to maintain an airtight seal without holding during draws.
XLR 5 Pin Controller Compatibility
The included 25mm Extended Barrel Coil uses a standard 5 pin XLR pin out configuration, making it compatible with most standard industry controllers:
- Wiring Pin Out: Pin 1: Coil +, Pin 2: Coil -, Pin 3: TC +, Pin 4: TC -, Pin 5: Ground.
- Broad Compatibility: Plugs directly into PID controllers from Ripping Terps, CrossingTech, Auber, and Cannabis Hardware. (Please verify your controller’s pin out layout before connecting).

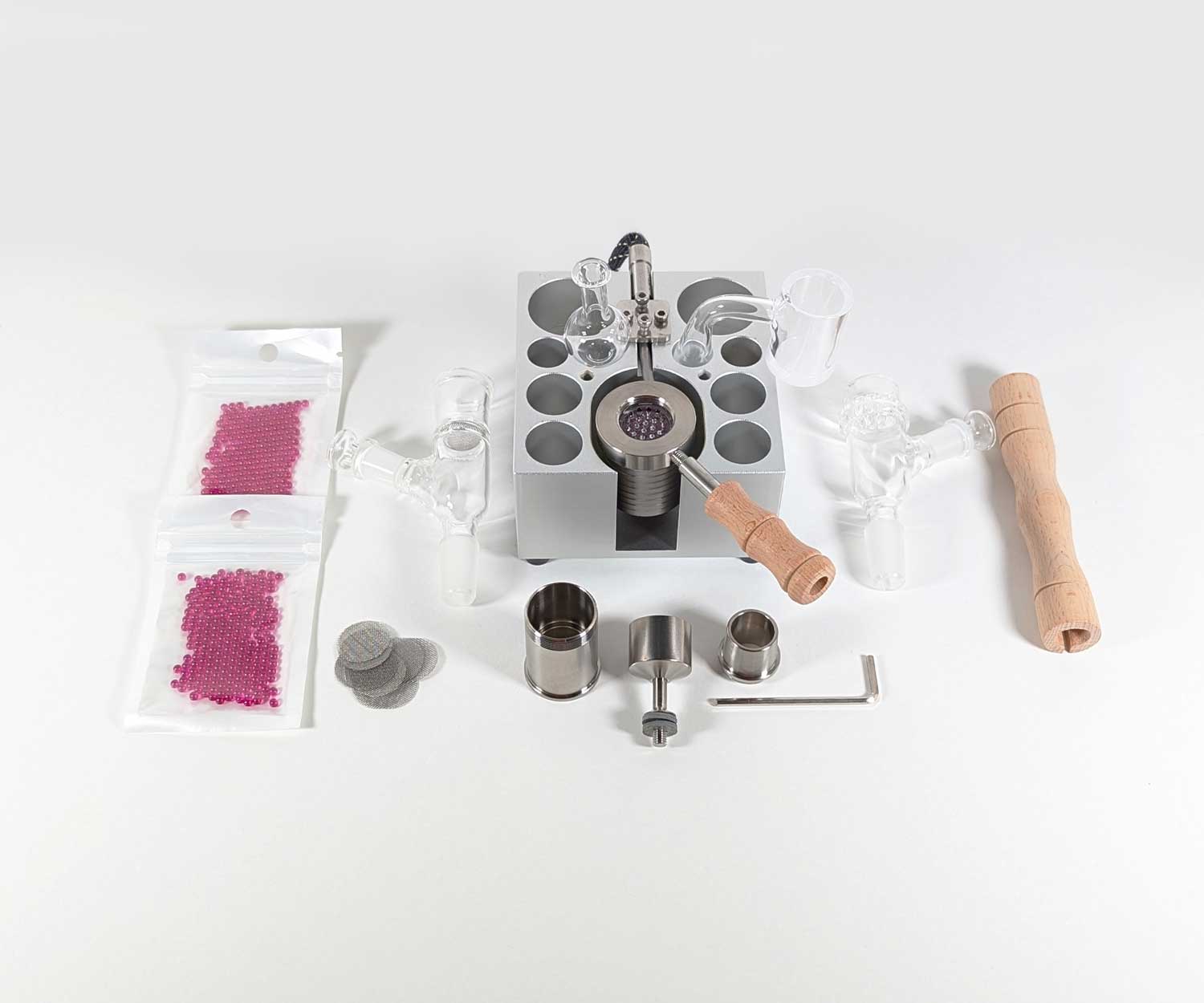

The AIO TKO Upgrade Kit Includes:
- 1x AIO Modular Heater Head
- 2x Natural Wooden Handles (1x for Wireless mode, 1x dedicated for Wired setup)
- 1x Titanium Wired Locking Collar
- 1x Glass Internal Core Assembly (Pre-installed with 180x 3mm Ruby Balls)
- 1x 6061 Aircraft Aluminium TKO Base Station (With non-slip rubber feet)
- 1x Screw-In Base Docking Post (For parking the head in wired mode)
- 1x 25mm Extended Barrel Heating Coil (XLR 5 Pin)
- 1x 14mm Glass Injector Bowl
- 1x 14mm Glass Diffuser Bowl (With pre-drilled glass screen)
- 1x 14mm Premium Opaque Bottom Quartz Banger (For concentrate dabbing)
- 1x Airflow Carb Cap
- 1x 18mm to 14mm Glass Reducer Adapter
- 1x Travel Case
Note: This upgrade pack does not include a Digital PID Temperature Controller or UK Power Cable. Designed for users who already own a compatible XLR 5 Pin PID unit. Designed for use with a separate glass water piece (such as a bubbler or rig). Glass water pieces are sold separately and can be purchased here.
⚠️ SAFETY & DISCLAIMER
EXTREME HEAT WARNING: The AIO TKO operates at temperatures exceeding 350°C. The heater head, coil, rubies, and metal housing retain intense heat during and after use. Always dock the heater head securely in the base station coil or on the dedicated wired docking post. Keep clear of flammable materials, children, and pets.
